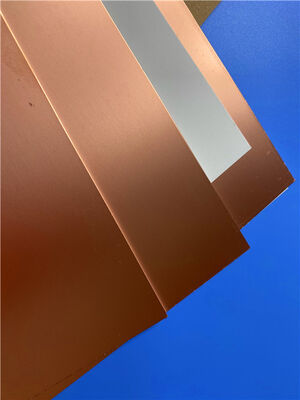

IsoClad 933 PCB Substrate Copper Clad Laminate Sheet
  • Nombre

IsoClad 933 PCB Substrate Copper Clad Laminate Sheet

Cuota De Producción: 1 Uds.
Precio: USD9.99-99.99
Embalaje Estándar: Bolsas de vacío + cajas de cartón
Período De Entrega: 8-9 días laborables
Método De Pago: T/T
Capacidad De Suministro: 5000 unidades por mes
Detalles Información
Descripción del Producto
Información detallada
Lugar de origen
Porcelana
Nombre de la marca
Bicheng
Certificación
UL, ISO9001, IATF16949
Número de modelo
BIC-332.V1.0
Número de pieza:
El ISOClad 933
Espesor del laminado:
0,381 mm 0,787 mm 1,575 mm
Tamaño laminado:
305X460mm(12X18''); 24X18''(610X457mm)
Peso de cobre:
0,5 oz (0,018 mm), 1 oz (0,035 mm);
Resaltar:

IsoClad 933 PCB substrate

,

copper clad laminate sheet

,

PCB substrate with warranty

Descripción del Producto

IsoClad® 933 laminates are nonwoven fiberglass-reinforced PTFE composite materials tailored for deployment as printed circuit board (PCB) substrates. The nonwoven reinforcement architecture imparts enhanced flexural capability, making these laminates ideally suited for applications requiring post-fabrication circuit bending—conformal or “wrap-around” antennas represent a prime use case for this attribute.


Unlike standard nonwoven fiberglass/PTFE alternatives, IsoClad series laminates incorporate longer randomly oriented fibers and leverage a proprietary manufacturing process to deliver superior dimensional stability and enhanced dielectric constant (Dk) uniformity, even when compared to competitive products with equivalent dielectric constant values.


With a dielectric constant (Er) of 2.33, IsoClad 933 laminates utilize a higher fiberglass-to-PTFE ratio to form a highly reinforced composite structure. This optimized formulation achieves improved dimensional stability alongside elevated mechanical strength, without compromising core electrical performance.



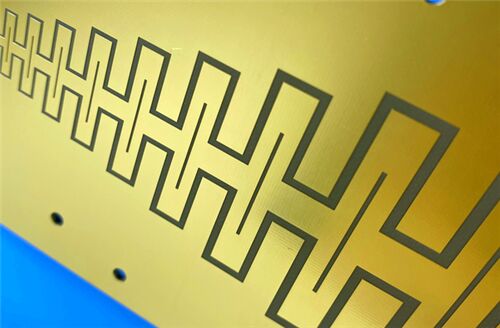

IsoClad 933 PCB Substrate Copper Clad Laminate Sheet 0


Features

  • Nonwoven fiberglass reinforcement
  • Low dielectric constant (Er = 2.33)
  • Ultra-low signal loss


Benefits

  • Reduced rigidity versus woven fiberglass-reinforced laminates
  • Exceptional isotropy across the X, Y, and Z axes


Typical Applications

  • Conformal antennas
  • Stripline and microstrip circuits
  • Missile guidance systems
  • Radar and electronic warfare systems



Property Test Method Condition IsoClad 933
Dielectric Constant @ 10 GHz IPC TM-650 2.5.5.5 C23/50 2.33
Dissipation Factor @ 10 GHz IPC TM-650 2.5.5.5 C23/50 0.0016
Thermal Coefficient of Er (ppm/°C) IPC TM-650 2.5.5.5 (Adapted) -10°C to +140°C -132
Peel Strength (lbs.per inch) IPC TM-650 2.4.8 After Thermal 10
Volume Resistivity (MΩ-cm) IPC TM-650 2.5.17.1 C96/35/90 3.5 x 10⁸
Surface Resistivity (MΩ) IPC TM-650 2.5.17.1 C96/35/90 1.0 x 10⁸
Arc Resistance (seconds) ASTM D-495 D48/50 >180
Tensile Modulus (kpsi) ASTM D-638 A, 23°C 173, 147
Tensile Strength (kpsi) ASTM D-882 A, 23°C 6.8, 5.3
Compressive Modulus (kpsi) ASTM D-695 A, 23°C 197
Flexural Modulus (kpsi) ASTM D-790 A, 23°C 239
Dielectric Breakdown (kV) ASTM D-149 D48/50 >45
Density (g/cm³) ASTM D-792 (Method A) A, 23°C 2.27
Water Absorption (%) MIL-S-13949H 3.7.7; IPC TM-650 2.6.2.2 E1/105 + D24/23 0.05
Coefficient of Thermal Expansion (ppm/°C) IPC TM-650 2.4.24; Mettler 3000 Thermomechanical Analyzer 0°C to 100°C X Axis: 31
Y Axis: 47 Y Axis: 35
Z Axis: 236 Z Axis: 203
Thermal Conductivity (W/mK) ASTM E-1225 100°C 0.263
Outgassing Requirements 125°C, ≤10⁻⁶ torr -
Total Mass Loss (%) Maximum 1.00% 125°C, ≤10⁻⁶ torr 0.03
Collected Volatile Condensable Material (%) Maximum 0.10% 125°C, ≤10⁻⁶ torr 0.00
Water Vapor Regain (%) - 125°C, ≤10⁻⁶ torr 0.02
Visible Condensate ± 125°C, ≤10⁻⁶ torr NO
Flammability UL 94 Vertical Burn; IPC TM-650 2.3.10 C48/23/50, E24/125 Meets requirements of UL94-V0



IsoClad 933 PCB Substrate Copper Clad Laminate Sheet 1

Etiquetas:

0Laminado revestido con cobre de.1 mm,

BME217 Laminado revestido de cobre,

Laminado revestido de cobre de 12 mm
