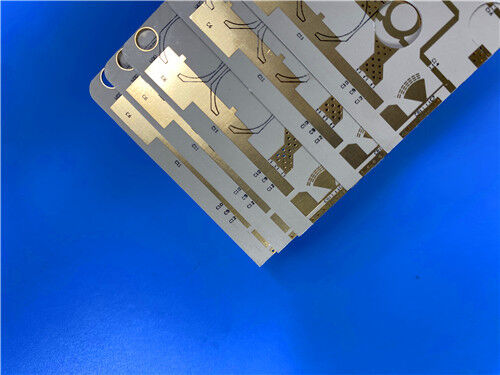

2-layer TMM13i Rogers PCB 15mil Material Black Silkscreen

This high-performance 2-layer rigid PCB is made of Rogers TMM13i, an isotropic thermoset microwave ceramic-polymer composite. Tailored for reliable plated thru-hole strip-line and micro-strip applications, it leverages the material’s isotropic Dk, ceramic-PTFE advantages, and soft substrate process compatibility, delivering stable electrical and mechanical performance for RF, microwave, and satellite communication uses.

PCB Construction Details

PCB Stack-up

Artwork, Accepted Standard and Availability

Artwork for this PCB is provided in the Gerber RS-274-X format, the industry standard for PCB manufacturing.

The PCB complies with the IPC-Class-2 accepted standard, a globally recognized benchmark guaranteeing consistent electrical performance, reliable manufacturing quality, and adherence to industry requirements for microwave applications.

Furthermore, this PCB is available worldwide, catering to the needs of international customers and RF/microwave circuit projects globally.

Introduction to Rogers TMM13i Material

The Rogers TMM13i isotropic thermoset microwave material is a ceramic thermoset polymer composite specifically tailored for high reliability in plated thru-hole strip-line and micro-strip applications. It features an isotropic dielectric constant (Dk) and integrates the advantageous properties of both ceramic and PTFE substrates, while enabling the convenience of soft substrate processing methods—simplifying fabrication while maintaining high performance.

Key Features of Rogers TMM13i Material

Key Benefits of Rogers TMM13i Material

-Superior mechanical properties resist creep and cold flow, ensuring long-term structural stability.

-Resistant to process chemicals, minimizing damage during fabrication and enhancing yield.

-Eliminates the need for sodium napthanate treatment prior to electroless plating, simplifying manufacturing processes.

-Based on a thermoset resin, enabling reliable wire-bonding for high-reliability electronic assemblies.

Typical Applications

Leveraging its high reliability, isotropic Dk, and excellent mechanical/electrical properties, this PCB is specifically designed for the following applications:

-Chip Testers

-Dielectric Polarizers and Lenses

-Filters and Couplers

-RF and Microwave Circuitry

-Satellite Communication Systems

Conclusion

Fabricated utilizing Rogers TMM13i isotropic thermoset microwave material, this 2-layer printed circuit board (PCB) delivers high reliability and consistent performance for plated thru-hole strip-line, micro-strip, and other demanding radio frequency (RF) and microwave applications.

The core advantages of Rogers TMM13i—encompassing its isotropic dielectric constant (Dk), copper-matched coefficient of thermal expansion (CTE), lead-free process compatibility, and chemical resistance—establish this PCB as a highly reliable solution for high-performance, high-reliability microwave design applications.
