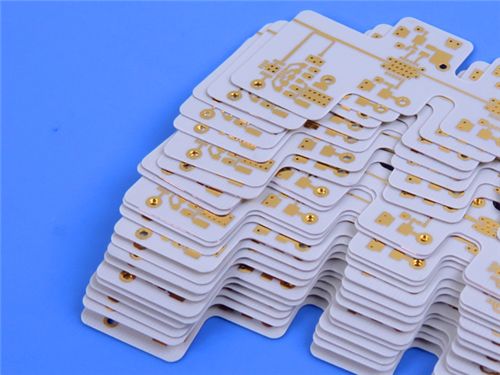

0.2mm Thickness ISO 9001 Certified 49mm x 27mm Size RF PCB Board High Frequency PCB with Rogers RO3010
  • Nombre

0.2mm Thickness ISO 9001 Certified 49mm x 27mm Size RF PCB Board High Frequency PCB with Rogers RO3010

Cuota De Producción: 1 por ciento
Precio: USD9.99-99.99
Embalaje Estándar: Bolsas de vacío+cartones
Período De Entrega: 8-9 días hábiles
Método De Pago: T/T
Capacidad De Suministro: 5000pcs por mes
Detalles Información
Descripción del Producto
Información detallada
Lugar de origen
PORCELANA
Nombre de la marca
Bicheng
Certificación
UL, ISO9001, IATF16949
Número de modelo
BIC-052.V1.0
Material base:
Rogers RO3010
Recuento de capas:
De doble cara
Espesor de la PCB:
0.2 mm
Tamaño de PCB:
49 mm x 27 mm = 1pcs
Peso de cobre:
1oz (1.4 mils)
Acabado superficial:
Enig
Resaltar:

0.2mm Thickness RF PCB Board

,

ISO 9001 Certified High Frequency PCB

,

49mm x 27mm Size Microwave PCB

Descripción del Producto
2-Layer RO3010 RF PCB on 5mil Rogers Laminate
This 2-layer PCB, built with Rogers RO3010 as its base material, is a high-performance electronic component engineered for precision and reliability. Measuring 49mm x 27mm (1 piece), this compact PCB leverages the unique properties of RO3010 to deliver exceptional electrical and mechanical stability, making it ideal for a range of demanding applications.
Rogers RO3010 is a ceramic-filled PTFE composite known for its high dielectric constant and excellent stability. As a cost-effective material with superior mechanical and electrical properties, it simplifies broadband component design and performs reliably across a wide frequency range. Its characteristics also support circuit miniaturization, making it a versatile choice for compact electronic systems.
Construction Details
Parameter Specification
Layer Count 2-layer
Board Dimensions 49mm x 27mm = 1PCS
Minimum Trace/Space 4/5 mils, enabling precise routing in compact designs without compromising signal integrity
Minimum Hole Size 0.2mm, accommodating small components for space-efficient layouts
Finished Thickness 0.2mm, ultra-thin design suitable for applications with strict space constraints
Outer Cu Weight 1oz (1.4 mils), ensuring reliable conductivity for various current requirements
Via Plating 20μm thick, enhancing interlayer connection durability against thermal and mechanical stress
Surface Finish ENIG (Electroless Nickel and Immersion Gold), providing superior corrosion resistance and consistent solderability
Silkscreen White on top (clear component identification), none on bottom (simplified design)
Solder Mask None on top or bottom, tailored for specific application needs
Electrical Test 100% tested before shipment (checks for shorts, opens, and impedance) to ensure functionality
PCB Stack-up
Layer Material/Component Thickness
Copper_layer_1 Copper 35μm
Substrate Rogers RO3010 5mil (0.127mm)
Copper_layer_2 Copper 35μm
0.2mm Thickness ISO 9001 Certified 49mm x 27mm Size RF PCB Board High Frequency PCB with Rogers RO3010 0
Artwork: Supplied in Gerber RS-274-X format, the industry standard for seamless manufacturing integration.
Quality Standard: Adheres to IPC-Class-2, ensuring consistent performance for general electronic applications.
Availability: Offered worldwide, supporting global supply chains and project needs.
RO3010 Features
Dielectric Constant: 10.2±0.30 at 10 GHz/23°C, providing stable signal propagation for high-frequency designs.
Dissipation Factor: 0.0022 at 10 GHz/23°C, minimizing energy loss for efficient operation.
Low CTE: 13 ppm/°C (X), 11 ppm/°C (Y), 16 ppm/°C (Z) (-55 to 288°C), ensuring dimensional stability across temperature ranges.
High Td: >500°C, maintaining integrity in extreme heat.
Thermal Conductivity: 0.95 W/mK, facilitating effective heat dissipation.
Moisture Absorption: 0.05%, ensuring reliability in humid environments.
Operating Temperature: -40℃ to +85℃, suitable for harsh conditions.
0.2mm Thickness ISO 9001 Certified 49mm x 27mm Size RF PCB Board High Frequency PCB with Rogers RO3010 1
Benefits of Rogers 3010
  • Dimensional Stability: CTE matched to copper, reducing thermal stress and enhancing reliability.
  • Cost-Effective: Economical pricing ideal for volume manufacturing.
  • Quality Assurance: ISO 9001 certified, guaranteeing consistent production standards.
  • Design Flexibility: Compatible with multi-layer board designs for expanded application potential.
Typical Applications
  • Automotive radar systems
  • Global positioning satellite (GPS) antennas
  • Cellular telecommunications (power amplifiers, antennas)
  • Wireless communication patch antennas
  • Direct broadcast satellites
  • Cable system datalinks
  • Remote meter readers
  • Power backplanes
This PCB combines Rogers RO3010's advanced properties with precise engineering, making it a reliable solution for high-frequency, space-constrained, and performance-critical applications. Its compact size, stable performance, and broad compatibility ensure it meets the demands of modern electronic systems.
